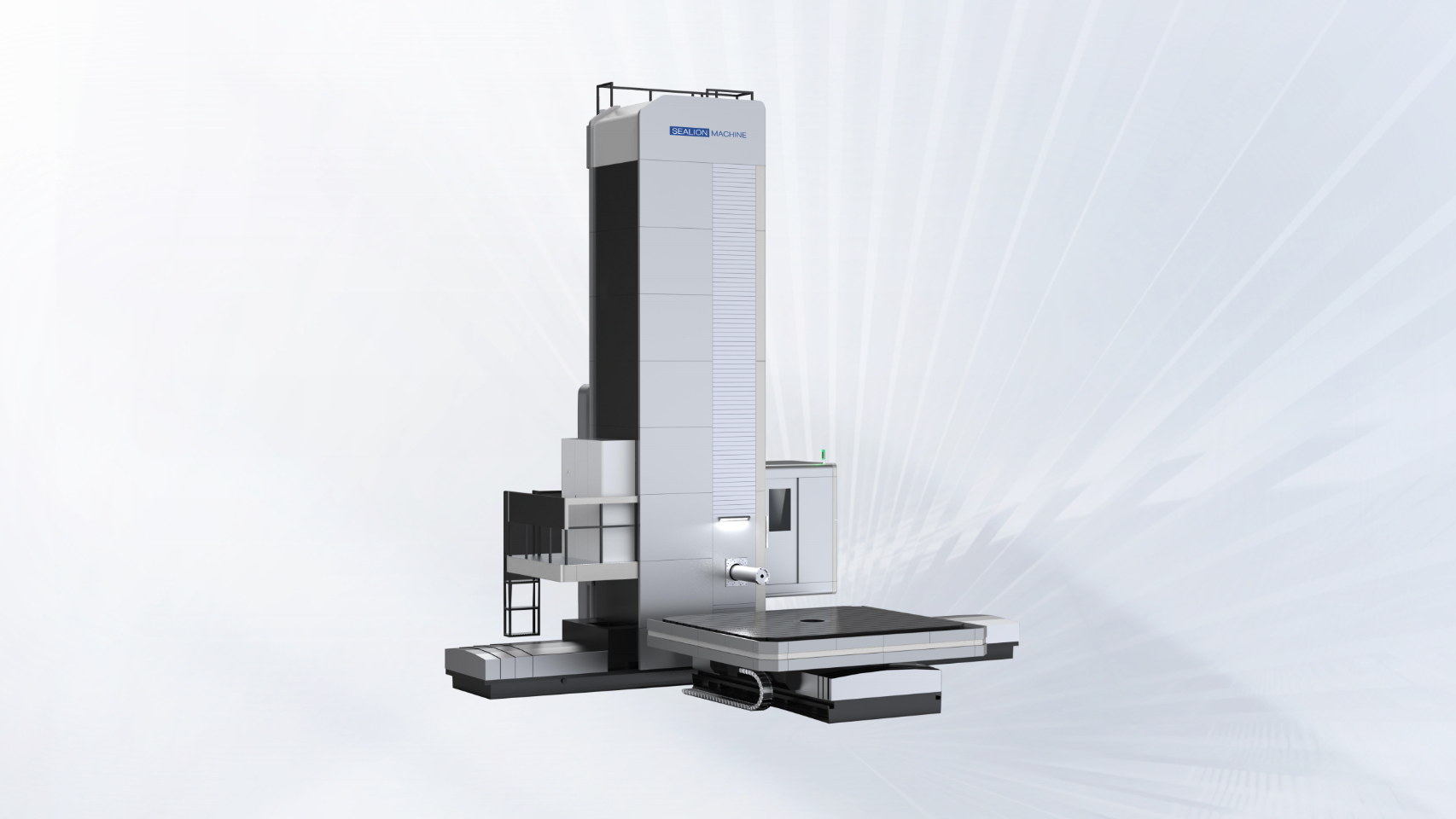

TK69 Series
CONSULT NOW
  • HT300 Hign Tension Casting
  • Rigid Design for Heavy Load upto 100T
  • Floor type boring and milling
  • Hydrostatic guideway
Send Inquiry
Application Area
Description
Features Of TK69 Series

Fully Closed RAM Design



Balance System by Imported Hawser



Protected Main Gearbox



High speed, low noise, high torque by synchronized feeding of spindle and ram



Highly rigid bed with multiple supports



Double-layer reinforcement design of the column



All guideway grinded



Column guide with unloading device



Self-contained multiple compensation methods

Specification
Parameters Of TK69 Series
SPINDLE   TK6913 TK6916 TK6920 TK6926
Spindle Diameter mm Φ130 Φ160 Φ200 Φ260
Spindle Taper ISO 50 50 60 60
Spindle Speed r/min 2-2500 2-2000 2-2000 2-1500
Milling End Diameter mm Φ221.44 Φ260 Φ320 Φ400
Ram Section mm 420×460

480×520

420×460

 480×520 680×800
Main Motor Power kw 30 58/45 75 110



WORKING RANGE   TK6913 TK6916 TK6920 TK6926
Column Trave (X) mm 4000+n×1000 6000+n×1000 6000+n×1000 8000+n×1000
Gearbox Travel in Vertical (Y)   2000-4000 3000-6000 3000-8000 4000-8000
Main Spindle Travel (W) mm 700 1200/900 1200 1600
Ram Travel (Z) mm 800 1200/900 1200 1600
Ram + Spindle Travel mm 1500

2400/1800

 2400 3200



FEEDING SPEED   TK6913 TK6916 TK6920 TK6926
X (Column) mm/min 0.5~10000 0.5~8000 0.5~8000 0.5~6000
Y (Gearbox) mm/min 0.5~10000 0.5~8000 0.5~8000 0.5~6000
W (Spindle) mm/min 0.5~6000 0.5~6000 0.5~4500
Z (Ram) mm/min 0.5~6000 0.5~6000 0.5~4500
