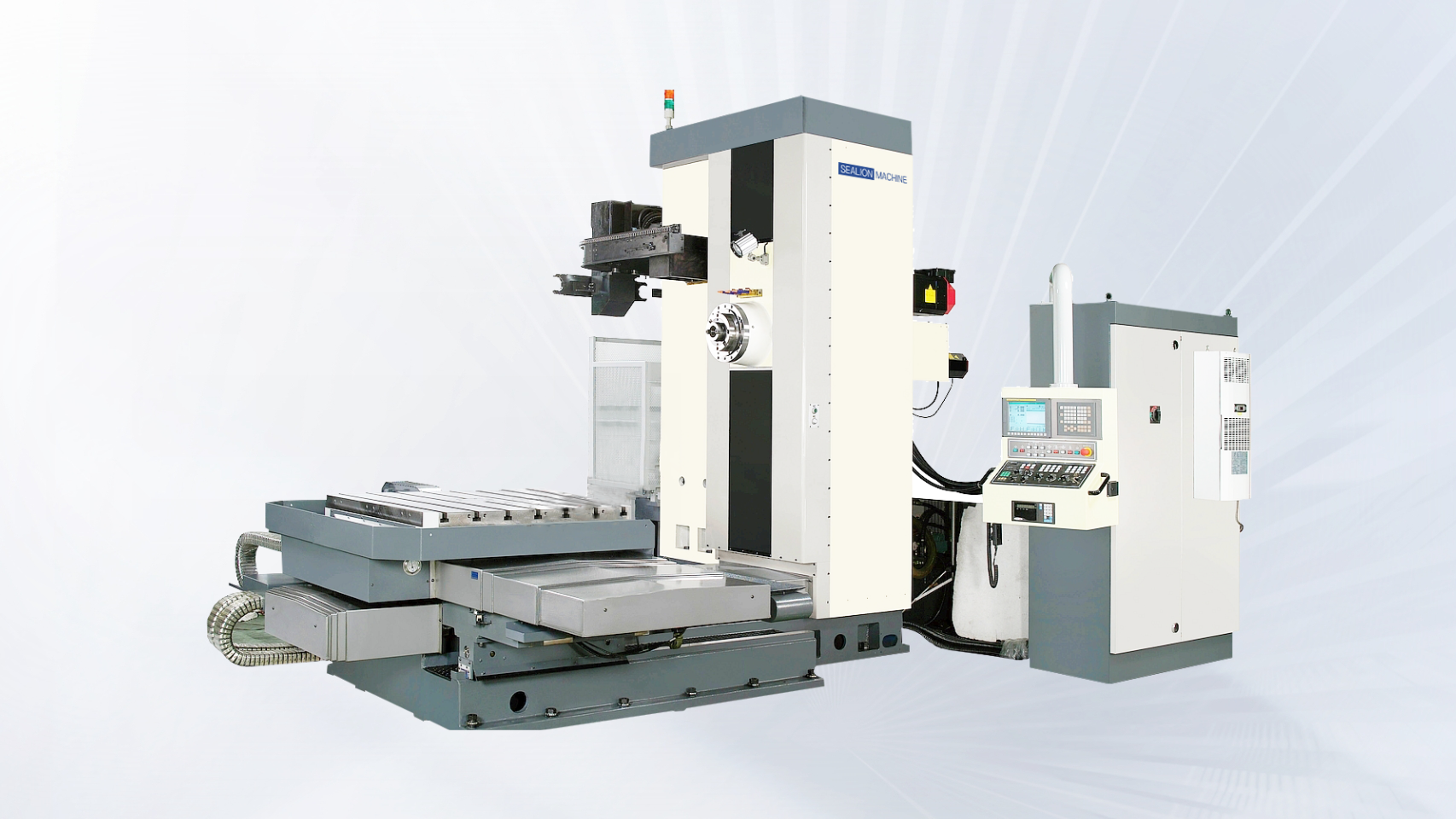

TK61 Series

Description

Features Of TK61 Series

Benchtop layout with integral bed, fixed columns and side-mounted spindle box.

Cross-type coordinate structure for table guideway.

Composite guideways/heavy-duty roller linear guideways are available, and the composite guideways are fully ground.

Integral auxiliary guideways are added to the bed to extend the lateral travel of the machine and to ensure good rigidity of the bed

The bed column guideways are fully ground.

A-type with fixed facing head, spindle axis system adopts three-layer structure (facing head spindle, hollow spindle and boring spindle), boring spindle is made of high-quality nitrided steel 38CrMOAIA, hollow spindle is made of high-quality alloy steel, the axes system structure is rigid and high-precision.

High and low spindle speed control, spindle quasi-stop function; the main feed axes are driven by independent AC servomotor through ball screw drive.

Optional automatic tool magazine system to increase effeciency.

Specification

Parameters Of TK61 Series

SPINDLE		TK6111	TK6113
Spindle Diameter	mm	110	130
Spindle Speed	r/min	2~3000	2~3000
Facing Head Diameter	mm	630	750
Facing Head Travel	mm	150	180

ROTARY TABLE

TK6111

TK6113

Table Size(W*L)

1000×1250

1250×1400

1400×1400

1400×1600

1600×1800

1400×1600

1600×1800

1800×2000

2000×2000

Table Load Capacity

3000~10000

5000~15000

MACHINING RANGE		TK6111	TK6113
Table cross travel (X)	mm	1600~2000	1800~2000
Spindle box vertical travel (Y)	mm	1200~1800	1200~2000
Table longitudinal travel (Z)	mm	1200~1400	1200~1400
Spindle travel (W)	mm	600	800
