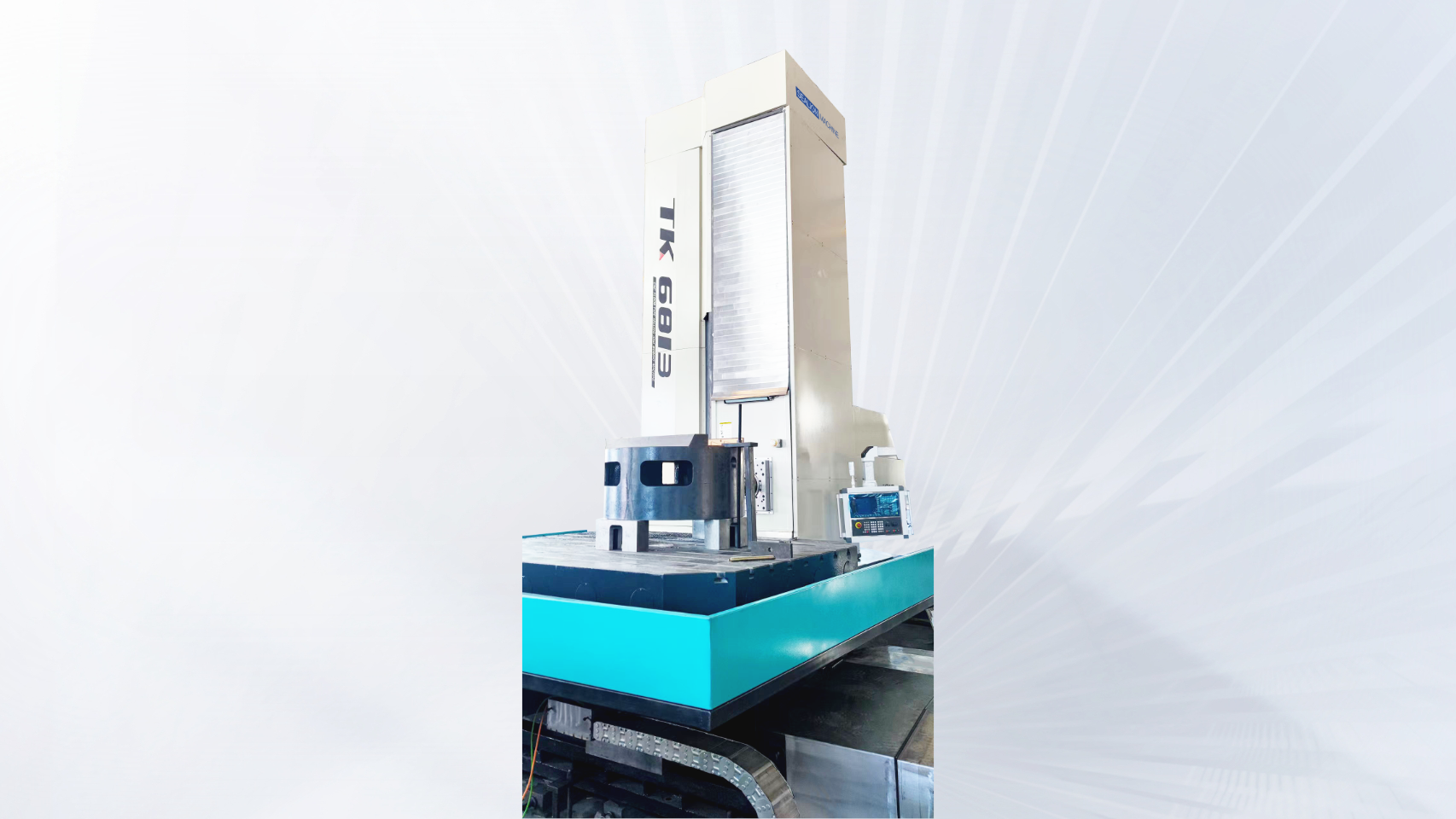

TK68 Series
CONSULT NOW
  • HT300 High Tension Casting
  • Fully Closed RAM
  • Table Load Capacity up to 60 tons
Send Inquiry
Application Area
Description
Features Of TK68 Series

Fully Closed RAM Design



Balance System by Imported Hawser



Protected Main Gearbox



High speed, low noise, high torque by synchronized feeding of spindle and ram



Highly rigid bed with multiple supports



Double-layer reinforcement design of the column



All guideway grinded



Column guide with unloading device



Self-contained multiple compensation methods

Specification
Parameters Of TK68 Series
SPINDLE   TK6813 TK6816 TH6820
Boring Spindle Diameter mm 130 160 200
Spindle Speed r/min 2~3000 2~2000 2~2000
Spindle Motor Power kw 30 45 51
Ram Size mm 420×460 420×460 480×520



ROTARY TABLE   TK6813 TK6816 TH6820
Table Size(W*L) mm

1600×1800

1800×2000

2000×2500

2500×3000

2000×2500

2500×3000

3000×3000

3000×3500

2000×2500

2500×3000

3000×3000

3000×3500
Table Load Capacity kg 5/10/20/40 20/40/60 20/40/60



MACHINING RANGE   TK6813 TK6816 TH6820
Table Travel (X) mm 2000~4000 2000~4500 2000~5000
Gearbox Vertical Travel (Y) mm 1800~3000 2000~3000 2000~3000
Column Travel (V) mm 1500~2000 1500~2000 1500~2500
Spindle Travel (W) mm 700 900 1200
Ram Travel (Z) mm 800 900 1200
