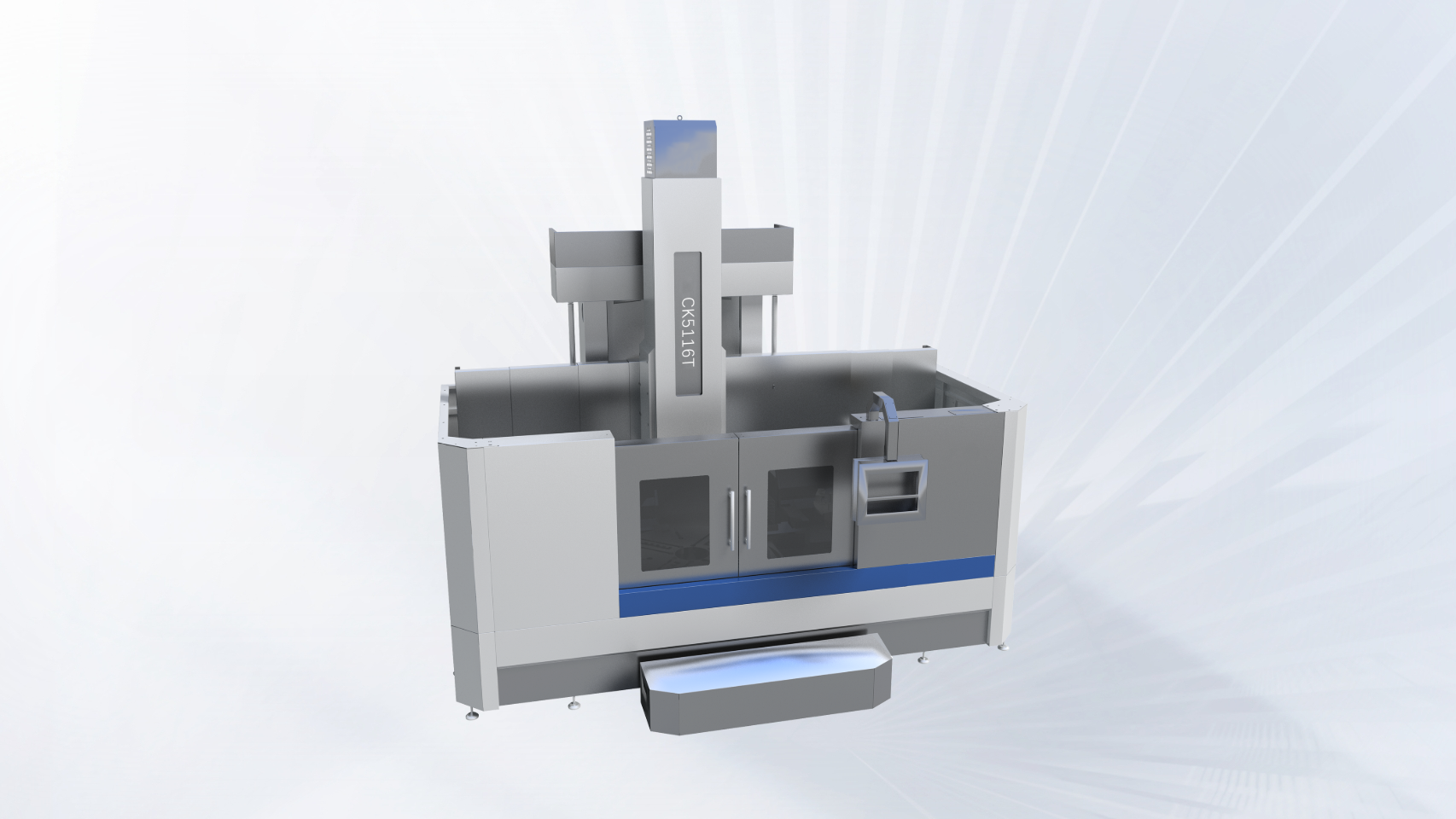

CK51T DOUBLE LIFTING SERIES

Description

Features Of CK51T DOUBLE LIFTING SERIES

This series is a double lift series and an upgraded version of the CK51D series, absorbing all the advantages of the CK51T series.

The crossbeam adopts dual screw driven lifting motion, and the bed guide rail is arranged in a thermally symmetrical structure.

The crossbeam maintains high parallelism accuracy for the worktable.

Effectively improved the consistency of various accuracies of the worktable with the vertical tool holder at different positions on the cross beam.

The positioning and repeatability accuracy of the feed axis are improved.

Specification

Parameters Of CK51T DOUBLE LIFTING SERIES

Item	Unit	CK5112T	CK5116T	CK5120T	CK5123T
Max Processing Diameter	mm	1250	1600	2000	2300
Max Turning Diameter	mm	1300	1700	2050	2370
Table Diameter	mm	1000	1400	1800	2000
Max Processing Height	mm	1000	1000	1250	1350
Max Processing Height Limit (OP)	mm	1250	1600	1800	1800
Table Speed	r/min	6.3~200	5~160	3.2~100	3.2~100
Table Speed Steps	/	4-Speed Stepless
Table Speed Steps (OP)	/	2-Speed Stepless
Table Load	t	3.2	5	8	8
Table Load (OP)	t	5	8	10	10
Feeding Speed of Tool Post	mm/min	0.1~1000
Rapid Speed of Tool Post	mm/min	2000
Horizontal Travel of Tool Post(X)	mm	-50~750	-50~1000	-50~1150	-50~1350
Cross Beam Travel	mm	Max Processing Height -350
Main Motor Power	kW	22	30	37	37
Main Motor Torque	KNm	10.5	17.9	35.3	35.3
Beam Lifting Speed	mm/min	440
Max Cutting Force of Vertical Tool Holder	Kn	20	25
Machine Dimension (LxW)	mm	2930×2400	3600×2650	3950×2985	4700×3600
Machine Dimension with Cover (LxW)	mm	4000×3714	4700×3805	5200×4325	5700×4220
Min Height	mm	2900	3100	3500	3500
Machine Weight	t	16	19	22	24
Accuracy Level	/	IT7
Positioning Accuracy	mm	0.025/1000
Repeatability Accuracy	mm	0.01/1000
Reverse Deviation	mm	0.012/1000
