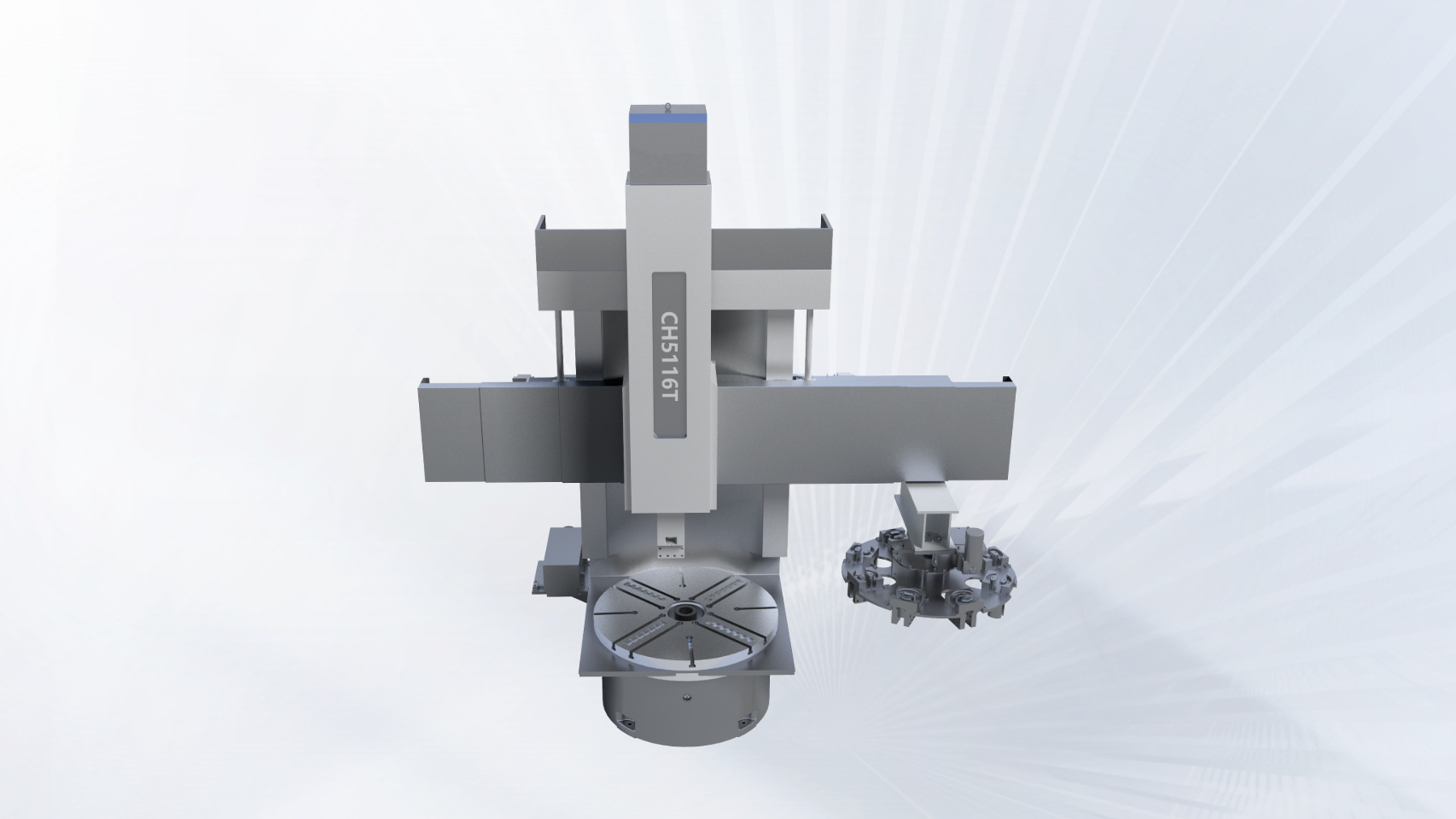

CH51T DOUBLE LIFTING WITH ATC SERIES

Description

Features Of CH51T DOUBLE LIFTING WITH ATC SERIES

This series is an extension of the CH51T series.

12 position ATC is avaliable on this series.

Extended crossbeam, double screw and symmetrical guiderailstructure increase the stability of the crossbeam.

The tool is T-shaped block cutting ,which is more suitable for turning function.

Specification

Parameters Of CH51T DOUBLE LIFTING WITH ATC SERIES

Item	Unit	CH5112T	CH5116T	CH5120T	CH5123T
Max Processing Diameter	mm	1250	1600	2000	2300
Max Turning Diameter	mm	1300	1700	2050	2370
Table Diameter	mm	1000	1400	1800	2000
Max Processing Height	mm	1000	1000	1250	1350
Max Processing Height Limit (OP)	mm	1250	1600	1800	1800
Table Speed	r/min	6.3~200	5~160	3.2~100	3.2~100
Table Speed Steps	/	4-Speed Stepless
Table Speed Steps (OP)	/	2-Speed Stepless
Table Load	t	3.2	5	8	8
Table Load (OP)	t	5	8	10	10
Feeding Speed of Tool Post	mm/min	0.1~1000
Rapid Speed of Tool Post	mm/min	2000
Horizontal Travel of Tool Post(X)	mm	-50~750	-50~1000	-50~1150	-50~1350
Cross Beam Travel	mm	Max Processing Height -350
Main Motor Power	kW	22	30	37	37
Main Motor Torque	KNm	10.5	17.9	35.3	35.3
Beam Lifting Speed	mm/min	440
Max Cutting Force of Vertical Tool Holder	Kn	25
Machine Dimension (LxW)	mm	3400×2400	4450×2650	4700×2985	5000×3600
Machine Dimension with Cover (LxW)	mm	4350×3714	5700×4100	5800×4325	6200×4220
Min Height	mm	2900	3100	3500	3500
Machine Weight	t	16	19	22	24
Accuracy Level	/	IT7
Positioning Accuracy	mm	0.025/1000
Repeatability Accuracy	mm	0.01/1000
Reverse Deviation	mm	0.012/1000
