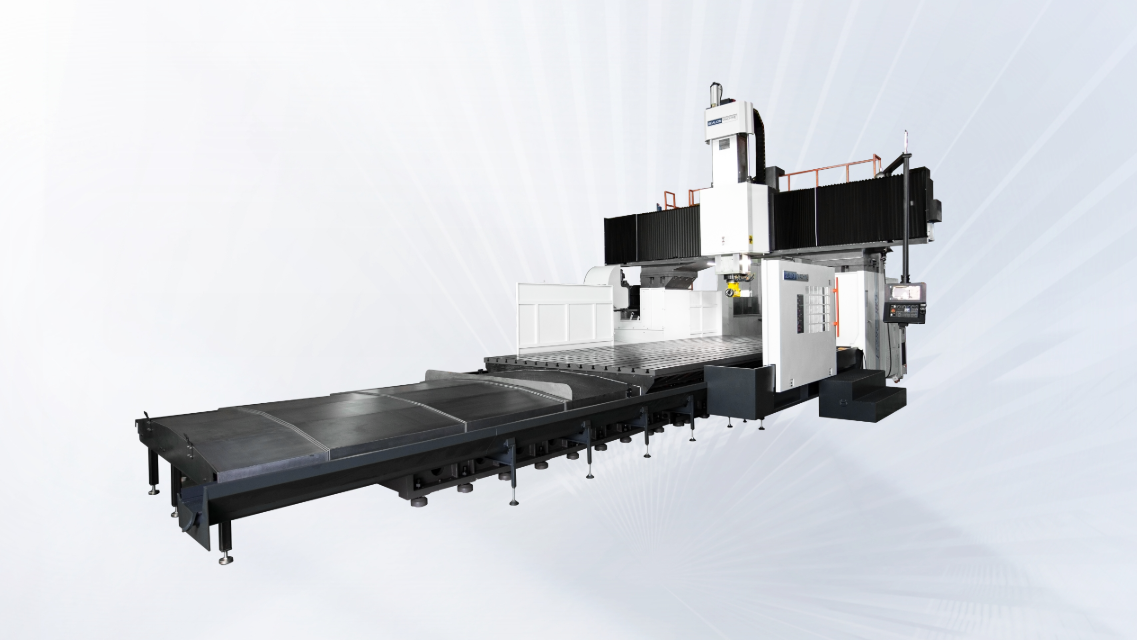

Square-Slide Gantry Machining Center
CONSULT NOW
  • High Rigidity High Precision High Torque
  • HT300 Casting
  • Multi Axis Simultaneous Control u class accuracy
  • Wide variety of processing methods and a wide range of application scenarios.
  • Rich Extended Configuration
Send Inquiry
Application Area
Description
Features Of Square-Slide Gantry Machining Center

High Rigidity High Precision High Torque

This series adopts fixed gantry frame and table moving structure, featuring high rigidity, high precision, large torque and good dynamic characteristics.



HT300 Casting

The key parts such as bed, column, saddle, spindle box and table are all made of resin sand molding, high-strength and high-quality cast iron, with good stability and small harmonic wave.



Multi Axis Simultaneous Control u class accuracy

Heavy load on table. The table is highly resistant to vibration during heavy cutting. Excellent flatness of the workpiece in finishing operations.



Wide variety of processing methods anda wide range ofapplication scenarios.

Ideal for aerospace, rail, wind power, mold and die, and a variety of other industrial parts. Easily perform complete five-sided milling, drilling, boring, reaming, reaming, countersinking, tapping and more by adding by adding one or more optional heads.



Rich Extended Configuration

The machine has been developed in depth and is available with a wide range of accessories.

Specification
Parameters Of Square-Slide Gantry Machining Center
Item Unit GMCR3022 GMCR4022 GMCR5022
Table Table Width mm 2000 2000 2000
Table Length mm 3000 4000 5000
Table Load t 10 12 14
T Slot ( No - WxD) / 9-28×200
Travel Gantry Width mm 2300
Gantry Height mm 1400
Table Trave (X Axis) mm 3000 4000 5000
Ram Travel (Y Axis) mm 2200(Tool Changer Travel 2700)
Spindle Travel (Z Axis) mm 1250
Square Ram Size mm 460×460
Spindle Distance between Spindle Nose to Table / 340~1340(OP heighten 180/250/300/430)
Spindle Type / BT50/Φ210(OP Φ200)
Spindle Transimission ZF Gearbox / Speed 4500r/min Ratio 4:1
Square Ram Spindle / Speed 3500r/min Ratio 8:1;2:1
Speed of XYZ Rapid Speed m/min 10
Feeding Speed m/min 6
XYZ Axis Type X Ballscrew / 8020
Y Ballscrew / 6316
Z Ballscrew / 5010
X Linear Guideway / Roller Guideway 55/10(Double) Roller Guideway 55/14(Double)
Y Linear Guideway / Roller Guideway 55/7(OP 55/5) Roller Guideway 55/7(OP 55/5)
Z Linear Guideway / Box Guideway Box Guideway
Motor Type XYZ Transmission Type /

X Belt Ratio2.5:1;

Y Direct Drive Ratio1:1;

Z Planetary Reduction Gear Ratio3:1

(OP:X Planetary Reduction Gear4:1;Y Planetary Reduction Gear3:1)
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 41 44 48



Item Unit GMCR3022C GMCR4022C GMCR5022C
Table Table Width mm 2000 2000 2000
Table Length mm 3000 4000 5000
Table Load t 10 12 14
T Slot ( No - WxD) / 9-28×200
Travel Gantry Width mm 2300
Gantry Height mm 1590
Table Trave (X Axis) mm 3000 4000 5000
Ram Travel (Y Axis) mm 2200(Tool Changer Travel 2700)
Spindle Travel (Z Axis) mm 1250
Square Ram Size mm 460×460
Spindle Distance between Spindle Nose to Table / 270~1520(OP heighten 120/250/300/500)
Spindle Type / BT50/Φ210(OP Φ200)
Spindle Transimission ZF Gearbox / Speed 4500r/min Ratio 4:1
Square Ram Spindle / Speed 3500r/min Ratio 8:1;2:1
Speed of XYZ Rapid Speed m/min 10
Feeding Speed m/min 6
XYZ Axis Type X Ballscrew / 8020
Y Ballscrew / 6316
Z Ballscrew / 5010
X Linear Guideway / Roller Guideway 55/10(Double) Roller Guideway 55/14(Double)
Y Linear Guideway / Roller Guideway 55/7(OP 55/5) Roller Guideway 55/7(OP 55/5)
Z Linear Guideway / Box Guideway Box Guideway
Motor Type XYZ Transmission Type /

X Belt Ratio2.5:1;

Y Direct Drive Ratio1:1;

Z Planetary Reduction Gear Ratio3:1

(OP:X Planetary Reduction Gear4:1;Y Planetary Reduction Gear3:1)
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 42 45 50



Item GMCR3025 GMCR4025 GMCR5025 GMCR6025 GMCR8025
Table Table Width 1400 1400 1600 1600 1600
Table Length 3000 3500 2200 2700 3200
Table Load 10 12 15 18 18
T Slot ( No - WxD) 11-28×200
Travel Gantry Width 2700
Gantry Height 1400 1390 1400
Table Trave (X Axis) 3000 4000 5000 6000 8000
Ram Travel (Y Axis) 2700(Tool Changer Travel 3050)
Spindle Travel (Z Axis) 1000
Square Ram Size 460×460
Spindle Distance between Spindle Nose to Table 340~1340(OP heighten 180/250/300/430) 330~1330(OP heighten 80/250/300/430) 250~1250(OP heighten 20/250/300/430)
Spindle Type BT50/Φ210(OP Φ200)
Spindle Transimission ZF Gearbox Speed 4500r/min Ratio 4:1
Square Ram Spindle Speed 3500r/min Ratio 8:1;2:1
Speed of XYZ Rapid Speed 10
Feeding Speed 6
XYZ Axis Type X Ballscrew 8016 10020
Y Ballscrew 5010 6316
Z Ballscrew 5010 5010
X Linear Guideway Roller Guideway 55/10 Roller Guideway 55/14(Double) Roller Guideway 55/18(Double) Roller Guideway 55/26(Double)
Y Linear Guideway Roller Guideway 55/7(OP Y Axis 5 Slide)
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type

X Planetary Reduction Gear Ratio4:1;

Y Direct Drive Ratio1:1;

Z Planetary Reduction Gear Ratio3:1

X Planetary Reduction Gear 4:1

Y Direct Drive 1:1

Z Planetary Reduction Gear Ratio3:1

(OP:Y Planetary Reduction Gear Ratio3:1)

X Planetary Reduction Gear 7.5:1

Y Direct Drive 1:1

Z Planetary Reduction Gear Ratio3:1

(OP:Y Planetary Reduction Gear Ratio3:1)
Spindle Motor Type See Torque Diagram
Size Weight of Machine 43 48 48 60 75



Item GMCR3025C GMCR4025C GMCR5025C GMCR6025C GMCR8025C
Table Table Width 2300 2300 2300 2300 2300
Table Length 3000 4000 5000 6000 8000
Table Load 10 12 15 18 18
T Slot ( No - WxD) 11-28×200
Travel Gantry Width 2700
Gantry Height 1600 1580 1700
Table Trave (X Axis) 3000 4000 5000 6000 8000
Ram Travel (Y Axis) 2700(Tool Changer Travel 3050)
Spindle Travel (Z Axis) 1250
Square Ram Size 500×500
Spindle Distance between Spindle Nose to Table 270~1520(OP heighten 120/250/300/500) 260~1510(OP heighten 120/250/300/500) 180~1430(OP heighten 120/250/300/500)
Spindle Type BT50/Φ210(OP Φ200)
Spindle Transimission ZF Gearbox Speed 4500r/min Ratio 4:1
Square Ram Spindle Speed 3500r/min Ratio 8:1;2:1
Speed of XYZ Rapid Speed 10
Feeding Speed 6
XYZ Axis Type X Ballscrew 8020 10020
Y Ballscrew 6316 6316
Z Ballscrew 6316 6316
X Linear Guideway Roller Guideway 55/10(Double) Roller Guideway 55/14(Double) Roller Guideway 55/18(Double) Roller Guideway 55/26(Double)
Y Linear Guideway Roller Guideway 55/7(OP Y Axis 5 Slide)
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type

X Planetary Reduction Gear Ratio4:1;

Y Direct Drive Ratio1:1;

Z Planetary Reduction Gear Ratio3:1

(OP:X Planetary Reduction Gear4:1;Y Planetary Reduction Gear3:1)

X Planetary Reduction Gear 4:1

Y Direct Drive 1:1

Z Planetary Reduction Gear Ratio3:1

(OP:Y Planetary Reduction Gear Ratio3:1)

X Planetary Reduction Gear 7.5:1

Y Direct Drive 1:1

Z Planetary Reduction Gear Ratio3:1

(OP:Y Planetary Reduction Gear Ratio3:1)
Spindle Motor Type See Torque Diagram
Size Weight of Machine 44 49 54 61 76



Item GMCR4032 GMCR5032 GMCR6032 GMCR8032 GMCR10032
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 8000 10000
Table Load 12 15 18 22 26
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 3200
Gantry Height 1700(OP heighten 250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 3200(Tool Changer Travel 3700)
Spindle Travel (Z Axis) 1250(OP 1500)
Square Ram Size 330~1580(OP heighten 250、500、750mm column)
Spindle Distance between Spindle Nose to Table 500×500
Spindle Type BT50/Φ210/H110
Spindle Transimission ZF Gearbox /
Square Ram Spindle Speed 6000r/min ZF Gearbox Ratio 4:1/1:1
Speed of XYZ Rapid Speed 10 8
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 10020 10020(Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway 55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear Ratio 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear3:1+Belt 2.5:1
Y Planetary Reduction Gear4:1
Z Planetary Reduction Gear3:1
Spindle Motor Type See Torque Diagram
Size Weight of Machine 52 57 62 69 82



Item GMCR6032 GMCR8032 GMCR6037A GMCR8037A
Table Table Width 2500 2500 2500 2500
Table Length 6000 8000 6000 8000
Table Load 25 30 25 30
T Slot ( No - WxD) 11-28×200,Two side1-28×180 Middle 11-28×200，Two side 1-28×180
Travel Gantry Width 3200 3700
Gantry Height 1780 1780 1730
Table Trave (X Axis) 6000 8000 6000 8000
Ram Travel (Y Axis) 3200(Tool Changer Travel 3800) 3200(Tool Changer Travel 4200)
Spindle Travel (Z Axis) 1250 1250
Square Ram Size 500×500 500×500
Spindle Distance between Spindle Nose to Table 430~1680(OP heighten 300/500) 380~1630(OP heighten 300/500) 430~1680(OP heighten 300/500 column) 400~1650(OP heighten 300/500 column)
Spindle Type BT50/Φ210 (Short Nose) BT50/Φ200
Spindle Transimission ZF Gearbox Speed 6000r/min Ratio 4:1 Speed 4500r/min Ratio 4:1
Square Ram Spindle / Speed 6000r/min Ratio 4:4:1
Speed of XYZ Rapid Speed 8 8
Feeding Speed 5 5
XYZ Axis Type X Ballscrew 10020 10020 (Nut Feeding) 10020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020 8020
Z Ballscrew 6316 6316 6316 6316
X Linear Guideway 4 Roller Guideway 55/28 4 Roller Guideway 55/36 4 Roller Guideway 55/28 4 Roller Guideway 55/36
Y Linear Guideway 2 Roller Guideway 55/8 2 Roller Guideway 55/8
Z Linear Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type

X Planetary Reduction Gear7:1;

Y Planetary Reduction Gear4:1;

Z Planetary Reduction Gear3:1;

X Planetary Reduction Gear3+Belt2.5;

Y Planetary Reduction Gear4:1;

Z Planetary Reduction Gear 3:1

X Planetary Reduction Gear7:1;

Y Planetary Reduction Gear4:1;

Z Planetary Reduction Gear3:1;

(OP:Z Belt 2:1)

X Planetary Reduction Gear3+Belt2.5;

Y Planetary Reduction Gear4:1;

Z Planetary Reduction Gear 3:1

(OP:Z Belt 2:1)
Spindle Motor Type See Torque Diagram See Torque Diagram
Size Weight of Machine 86 102 90 105



Item GMCR4038 GMCR5038 GMCR6038 GMCR8038 GMCR10038
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 8000 10000
Table Load 14 17 20 24 28
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 3800
Gantry Height 1700(OP heighten 250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 3800(Tool Changer Travel 4260)
Spindle Travel (Z Axis) 1250(OP 1500)
Square Ram Size 330~1580(OP heighten 250、500、750mm column)
Spindle Distance between Spindle Nose to Table 500×500
Spindle Type BT50/Φ210/H110
Spindle Transimission ZF Gearbox /
Square Ram Spindle Speed 6000r/min ZF Gearbox Ratio 4:1
Speed of XYZ Rapid Speed 10
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 10020 10020(Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway 2/55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear Ratio 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear3:1+Belt 2.5:1
Y Planetary Reduction Gear4:1
Z Planetary Reduction Gear3:1
Spindle Motor Type See Torque Diagram
Size Weight of Machine 54 59 64 74 84



Item GMCR12040 GMCR20040 GMCR6042 GMCR8042
Table Table Width 12000 12000 12000 12000
Table Length 3000 3000 6000 8000
Table Load 7 7 28 32
T Slot ( No - WxD) 80-28×250 15-28×250
Travel Gantry Width 4000 4200
Gantry Height 2250 1700
Table Trave (X Axis) 12000(Tool Changer Travel 13420) 20000(Tool Changer Travel 22000) 6000 8000
Ram Travel (Y Axis) 4200 4200(Tool Changer Travel 4800)
Spindle Travel (Z Axis) 1500 1250
Square Ram Size 500×500 500×500
Spindle Distance between Spindle Nose to Table 700~2200 400~1650(OP heighten 300/500mm column)
Spindle Type BT50/Φ210 BT50/Φ210(Short Nose)
Spindle Transimission ZF Gearbox Speed 6000r/min Ratio 4:1 4500r/min Ratio 4:1
Square Ram Spindle / /
Speed of XYZ Rapid Speed X:12 Y:10 Z:10 8
Feeding Speed 6 5
XYZ Axis Type X Ballscrew Driving Rack 10020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 55/20 4 Roller Guideway 55/28 4 Roller Guideway 55/36
Y Linear Guideway Roller Guideway 55/8 2 Roller Guideway 55/8
Z Linear Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type

X Driving Rack Ratio 88:1

Y Planetary Reduction Gear 4:1

Z Planetary Reduction Gear 3:1

X Planetary Reduction Gear7:1;

Y Planetary Reduction Gear4:1;

Z Planetary Reduction Gear3:1;



X Planetary Reduction Gear 4:1+2.5:1

Y Direct 4:1

Z Planetary Reduction Gear 3:1
Spindle Motor Type See Torque Diagram See Torque Diagram
Size Weight of Machine 109 159 90 108



Instant Inquiry
Please select the relevant specification parameters, and we will immediately send a quotation for the milling machining center you need.
Are you interested in applicable automation solutions?

Are you interested in our industry network application?
Recommended
Leave Your Message
×
Leave a message
Do you need help?
Send
熙珑（上海）机床有限公司
Follow Us
Contact SEALION

Our Location:

Room306, T2, No500, Xinlong Road,

Minhang District, Shanghai, China



Tel/Whatsapp:

+86-15901606828


E-Mail:

info@sealionmachine.com

About Us
About Sealion
Promises
Customer Experiences
R&D Center
Machines
Vertical Lathe
Slant Bed Lathe
Boring Machine
Machining Center
5-Axis
Application
Energy
Earth Moving
Die & Mold
General Machining
Engines
Down load
Vertical Lathe
Slant Bed Lathe
Boring Machine
Machining Center
5-Axis Machine
Service
Service Policy
Network
News
Company News
Exhibition & Events
Industry News
Contact Us
Contact Information
Privacy Policy
©2022 By Sealion Machine All Rights Reserved.
