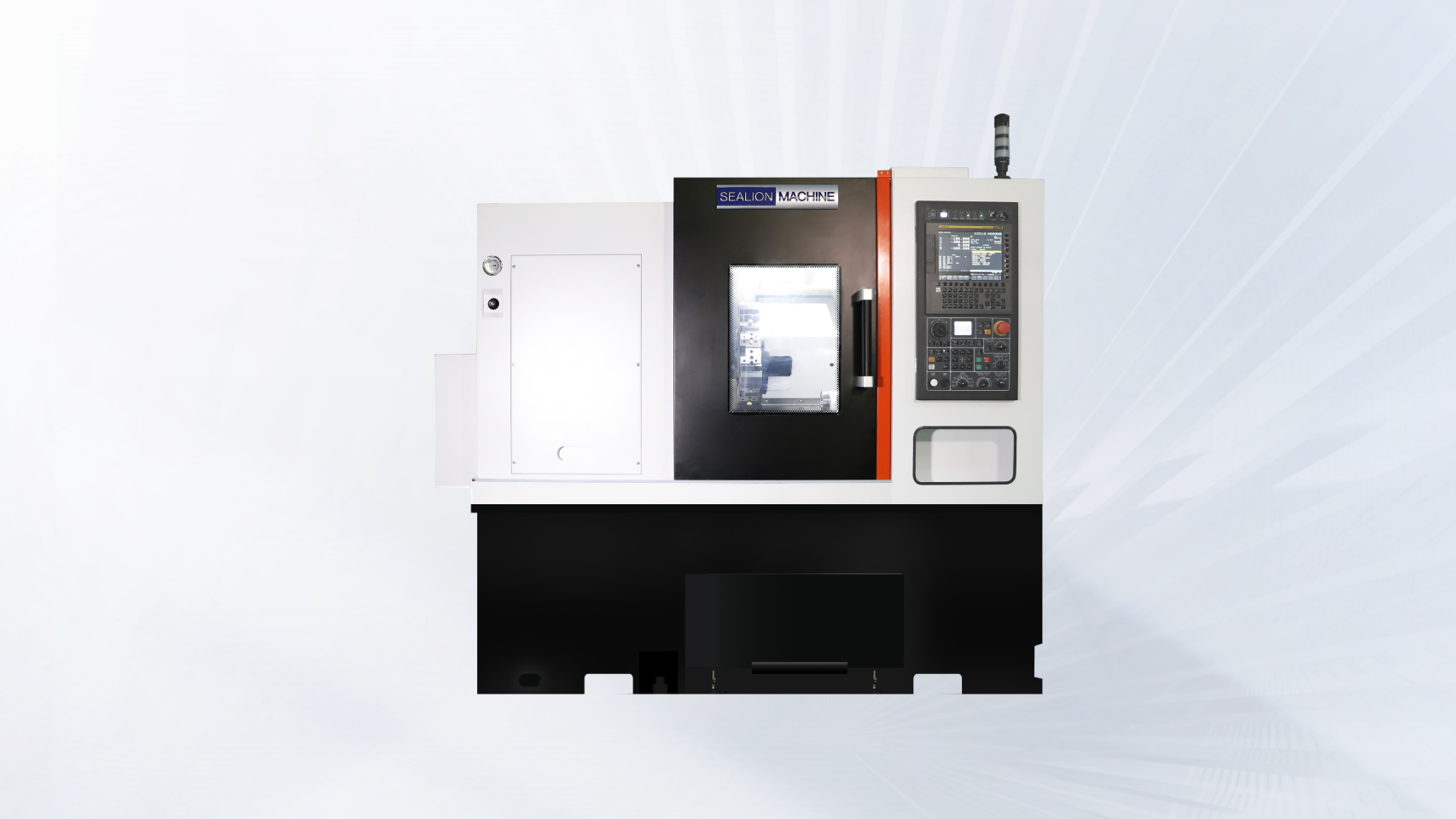

FT300 Slant Bed CNC Lathe

Description

Features Of FT300 Slant Bed CNC Lathe

This compact-design machine features a more rigid structure with ergonomic engineering to minimize floor space while enhancing operator comfort.

Its high-accuracy spindle system integrates advanced thermal control, a motorized spindle with high torque output, ensuring consistent precision and machining stability.

Built with world-class components like THK guideways, THK ballscrews, a NACHI hydraulic station, and an autogrip chuck, the system delivers reliable performance and durability.

To maximize versatility, optional configurations include a programmable tailstock, sub-spindle, tool presetter, and workpiece measurement systems, enabling efficient setup, complex part processing, and quality control in a single integrated solution.

Specification

Parameters Of FT300 FT300 Slant Bed CNC Lathe

		FT200	FT300
Machining Capacity	Max Swing Diameter	550mm	650mm
	Max Machining Diameter	330mm	370mm
	Max Machining Length	520mm	500/1000mm
Travel	X Travel	190mm	210mm
	Z Travel	580mm	560/1105mm
	Tailstock Travel	440mm	1000mm
Spindle	Spindle Motor	11/15kWtd>	22/26kW
	Spindle Type	JISA2-6	JISA2-8
	Spindle Speed	10-4500rpm	10-4000rpm
	Chuck Size	8”/10”	10”/12”
	Spindle Bore	62mm	91mm
Turret	Positions	8/12 Tools	12 Tools
	Indexing Time	0.2S	0.2S
	Turning Tool Size	25×25	25×25
	Boring Tools Size (Diameter	40mm/ 32mm	40mm/ 32mm
	Motor Power	1.1Kw	1.1Kw
Tailstock	Type	Programmable Servo Motor	Programmable Servo Motor
	Taper	MT No 4	MT No 4
	Power	1.7Kw	1.7Kw
Feeding	X Axis	30m/min 2.4Kw	20m/min 2.4Kw
Feeding	Z Axis	36m/min 2.4Kw	24m/min 2.4Kw
Coolant	Size	150L	150L
Power	Total	18KVA	25KVA
Weight of Machine	Total	4500Kg	6500Kg
