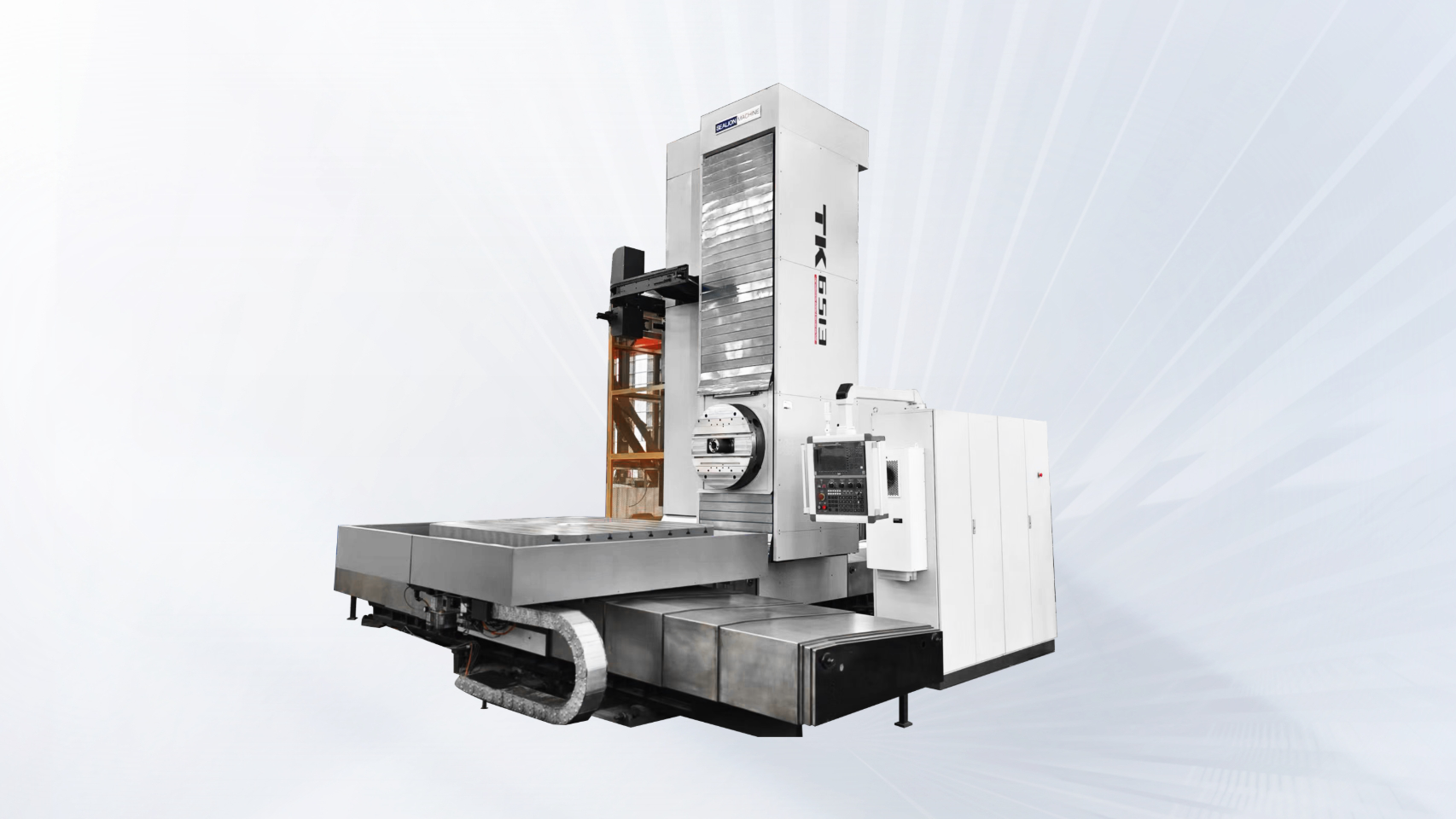

TK65 Series
CONSULT NOW
  • HT300 Hign Tension Casting
  • Table Load Capacity up to 40 tons
  • T-shape bed structure
Send Inquiry
Application Area
Description
Features Of TK65 Series

Balance System by Imported Hawser



Highly rigid bed with multiple supports



the composite guideways are fully ground



The rotary table is a large slewing bearing



The rotary gear ring is grinded large diameter gear ring



The rotary brake is hydraulic brake



The rotary drive is a double gear driven ring with backlash mechanism (double worm gears driving the ring through double gears).

Specification
Parameters Of TK65 Series
SPINDLE   TK6511 TK6513 TK6516
Boring Spindle Diameter mm 110 130 160
Spindle Speed r/min 2~3000 2~3000 2~2000
Spindle Motor Power kw 22 30 45



ROTARY TABLE TK6511 TK6513 TK6516
Table Size(W*L)

1000×1250

1250×1400

1400×1600

1600×1800

1400×1600

1600×1800

1800×2000

2000×2000

2000×2500

1800×2000

2000×2000

2000×2500

2500×2500
Table Load Capacity 3000/5000/10000 5000/10000/20000 10000/15000/20000/40000



MACHINING RANGE   TK6511 TK6513 TK6516
Table Travel (X) mm 1500~2000 2000~4000 3000~4000
Gearbox Vertical Travel (Y) mm 1200~1800 1500~2500 2000~3000
Spindle Travel (W) mm 1000~1500 1200~1600 1500~2000
Column Travel (Z) mm 500~600 800~900 900~1000
